At the front of valve design and technology the TOMOE range of Butterfly Valves is one of the finest and most comprehensive available, offering unparalleled levels of leak tightness, valve longevity and wear resistance. With an extensive range of body designs, material options and sizes, there is a TOMOE valve suitable for most applications.

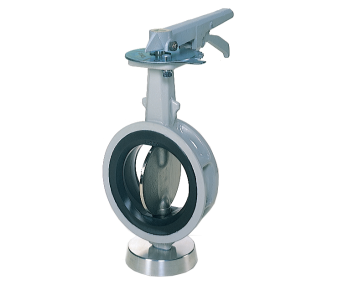

731P/732P/732Q/752W

Vulcanized Rubber Lining on The Body for

700E/700K/700S

Large Diameter Rubber Seat Butterfly Val

704G/722F/720F

10 BAR Rated Butterfly Valve for General

KRV

Large diameter rubber seated concentric

TRITEC

Triple offset Butterfly Valve ( Wafer, L

TRITEC (TT2)

Tripple offset Butterfly Valve ( Wafer,

344Q

Double offset Soft Seated Butterfly Valv

302Y/304Y

General Purpose High Temperature and Hig

Tomoe Gate Valve

Water Treatment & General Industries Pro

Code Product	731P/732P/732Q/752W
Description	731P/732P/732Q/752W
Size	14" to 24" (350mm to 600mm)
Pressure	Up to 2.0Mpa (from -20°C up to 120°C)

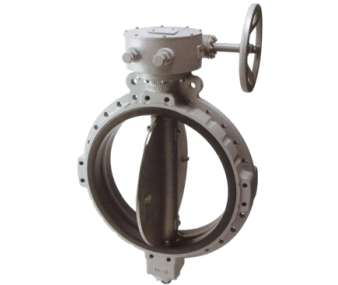

Code Product	700E/700K/700S
Description	700E/700K/700S
Size	26" to 66" (650mm to 1,650mm)
Pressure	Up to 1.0Mpa (from -20°C up to 120°C)

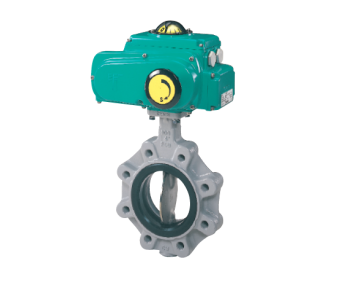

Code Product	704G/722F/720F
Description	704G/722F/720F
Size	2" to 54" (50mm to 1,350mm)
Pressure	Up to 1.0Mpa (from -20°C up to 120°C)

Code Product	KRV
Description	KRV
Size	40" to 80" (1,000mm to 2,000mm)
Pressure	Up to 0.6Mpa (from 0°C up to 100°C)

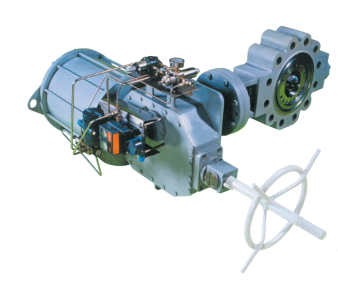

Code Product	TRITEC
Description	The Ultimate Process Valves
Size	2" to 66" (50mm to 1,650mm)
Pressure	Class 150, 300, 600, 900 and 1,500 (-46°C to 700°C)

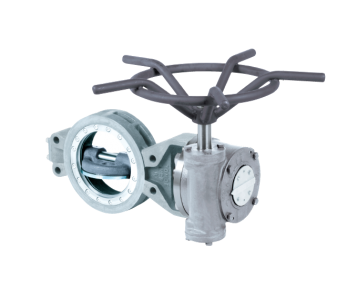

Code Product	TRITEC (TT2)
Description	The Triple Offset Process Valve
Size	3“ to 24” (80mm to 600mm)
Pressure	Class 150/Class 300, ( -29°C to 600°C)

Code Product	344Q
Description	High Performance Butterfly Valves to Suit API Standard
Size	3“ to 24” (80mm to 600mm)
Pressure	Up to 2.0MPa. (-29°C to 232°C)

Code Product	302Y/304Y
Description	General Purpose High Temperature and Pressure
Size	1-1/2" to12" (50mm to 300mm)
Pressure	Up to 2.0Mpa, (-29°C to 200°C)

Code Product	Tomoe Gate Valve
Description	Tomoe Gate Valve
Size
Pressure
